Specification:
| Type | Stainless Steel 1/2″ NPTF Ball Valve | Net Weight | 0.4kg |
| Body Material | SS316 | Manufacturing Capacity | 4000 pics/Month |
| Type of Connection | Female Thread | Warranty | 1 year |
| Seal Type | Hard Sealing | Manufacturing | Forging and CNC |
| Temperature | -65°F to 450°F (-54°C to 232°C) | Pressure Range | 6000Psi (414 Bar) |
| Media | Liquid, Gas, Steam, Oil | Prot Size | 1/2″ NPT |
Hongji Ball Valve

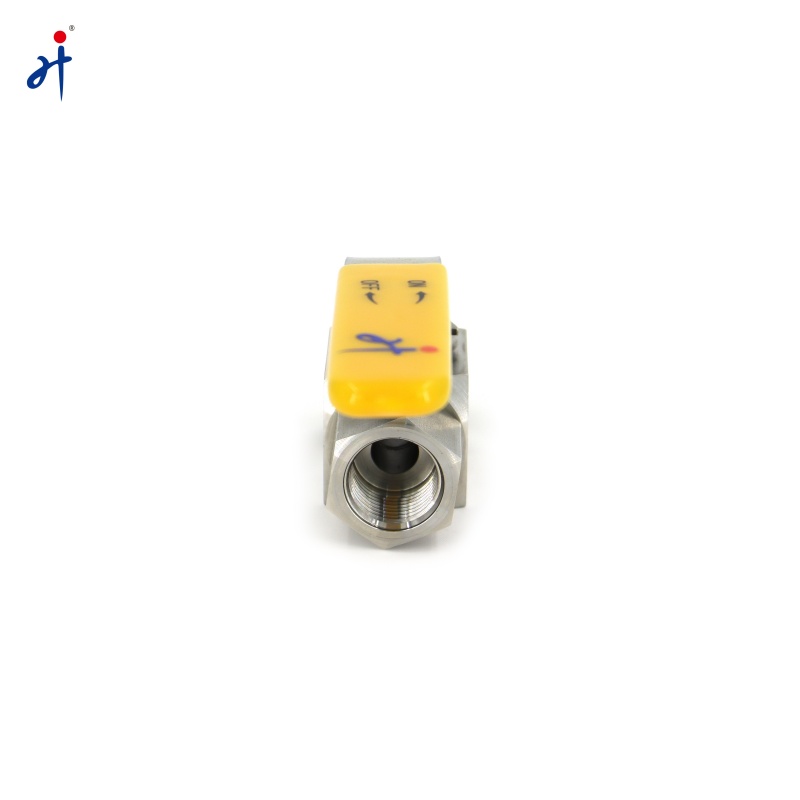

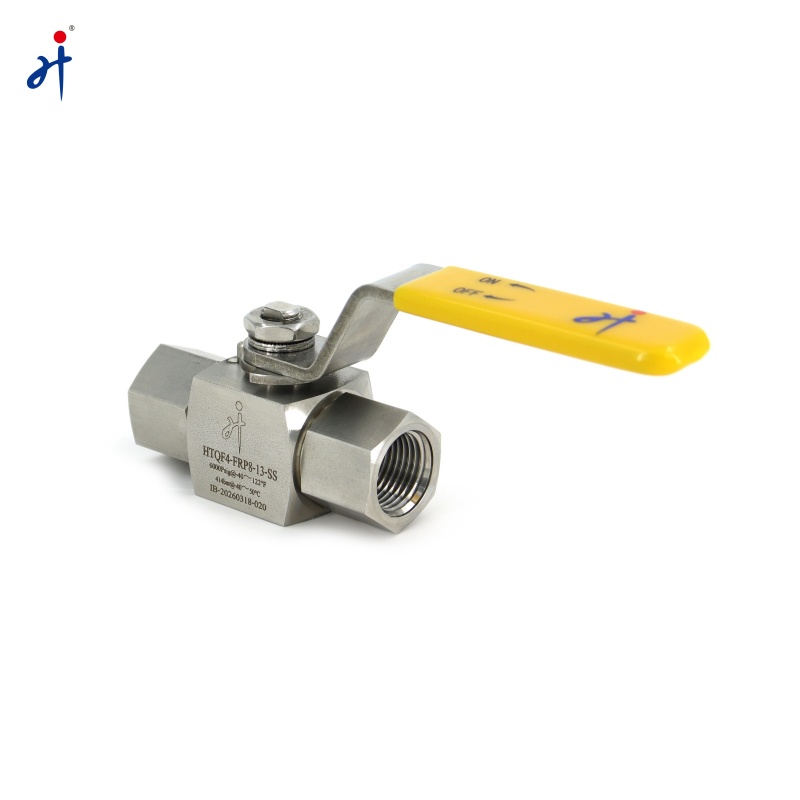

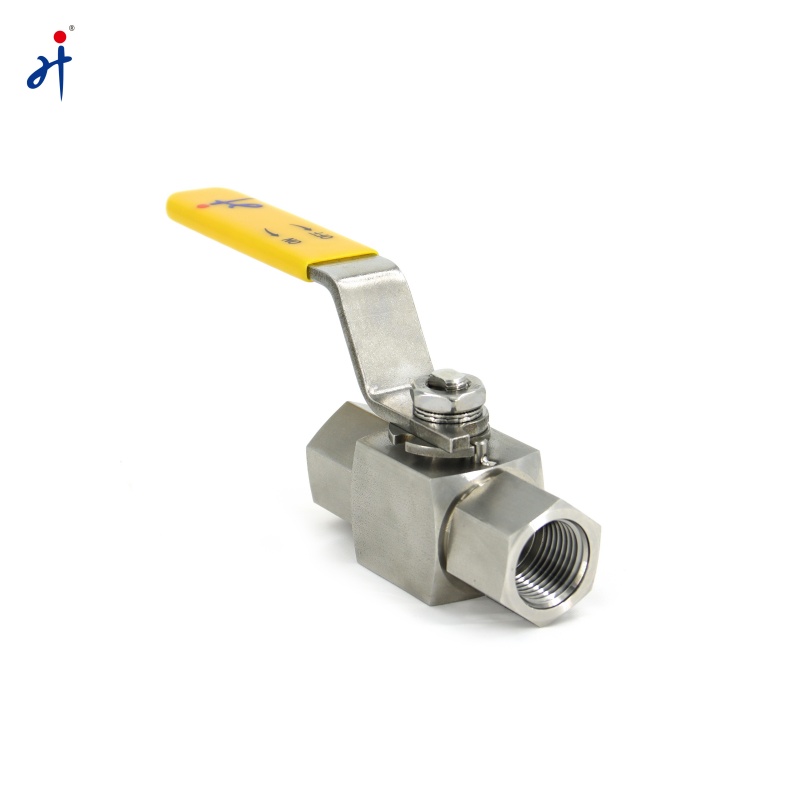

The High Pressure Stainless Steel 1/2″ NPTF Ball Valve is manufactured from premium 304/316 stainless steel for reliable shut-off performance in hydraulic and fluid control systems. Featuring durable NPTF threaded connections and a robust ball valve design, it provides excellent corrosion resistance, leak-tight sealing, and long service life under demanding operating conditions.
Ordering Number Description：
Notes:1. Standard thread pitch for metric threads are as follows:
M10 and below: 1 mm
M12 to M24: 1.5 mm
Remarks:
The order number above indicates specific port size and type and other perimeters, and can not be randomly combined, please refer to our sales support for more technical details or the catalog if needed.
