Stainless Steel Integrated 5 Valve Manifold

Stainless Steel Integrated 5 Valve Manifold

Specification:

Hongji Stainless Steel Integrated 5 Valve Manifold

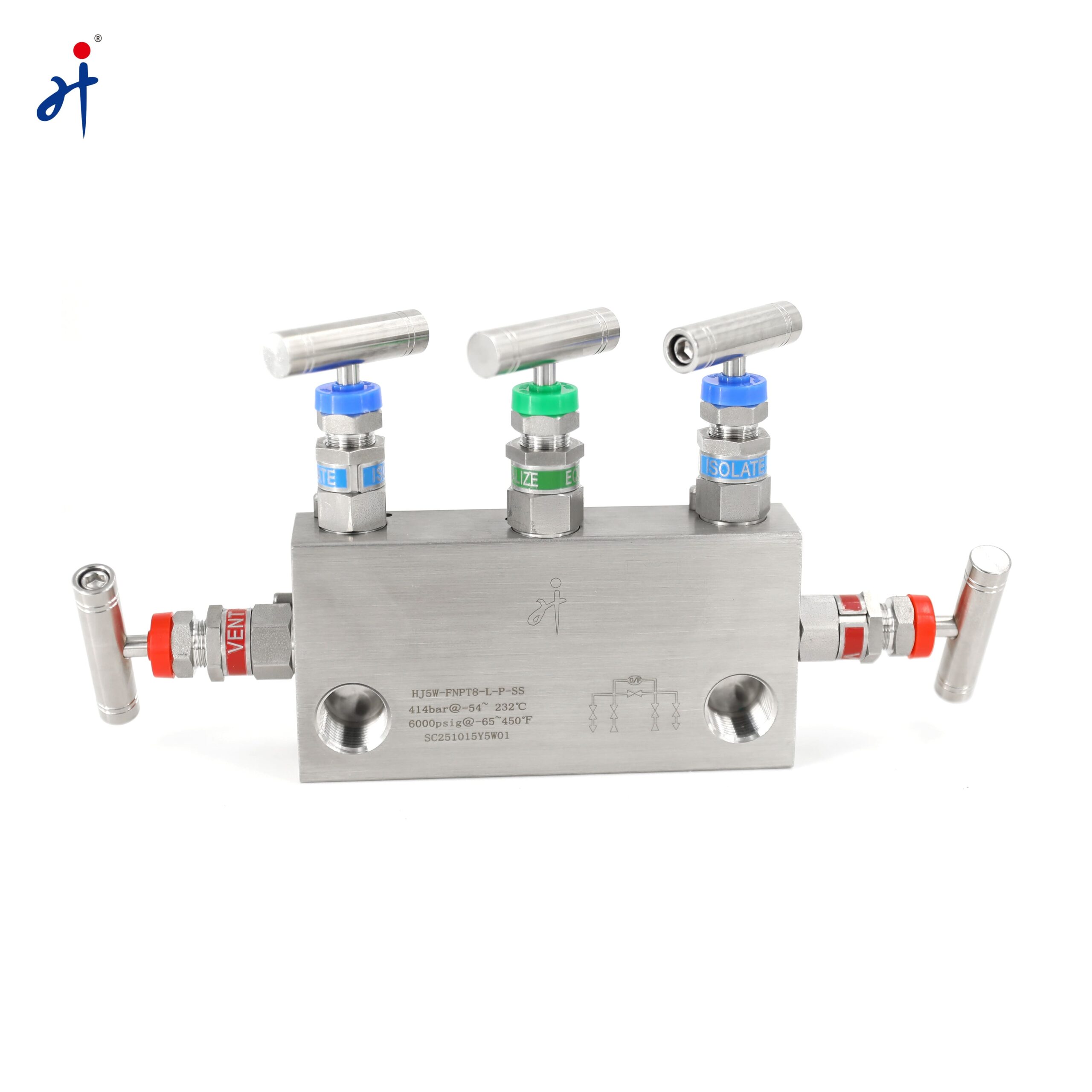

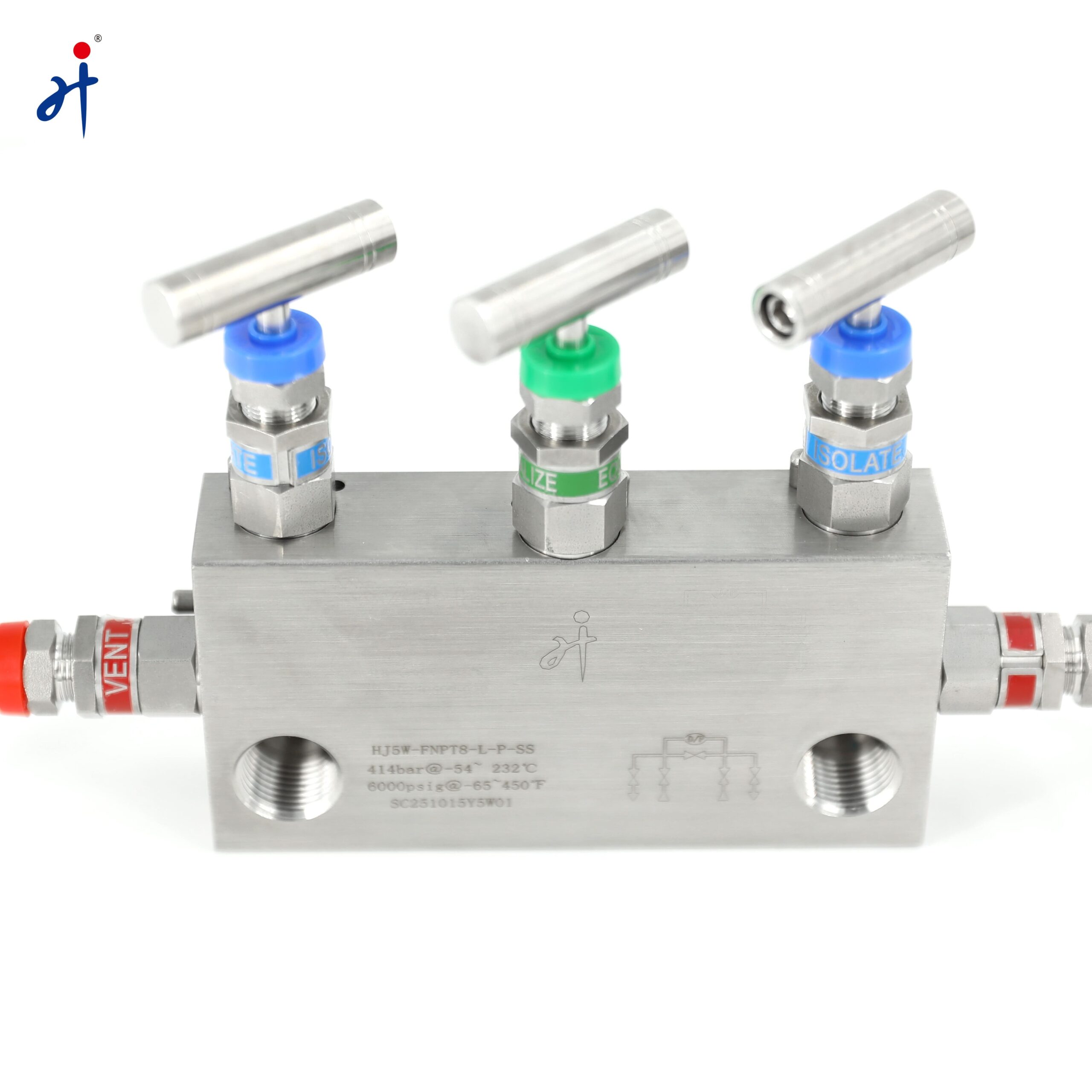

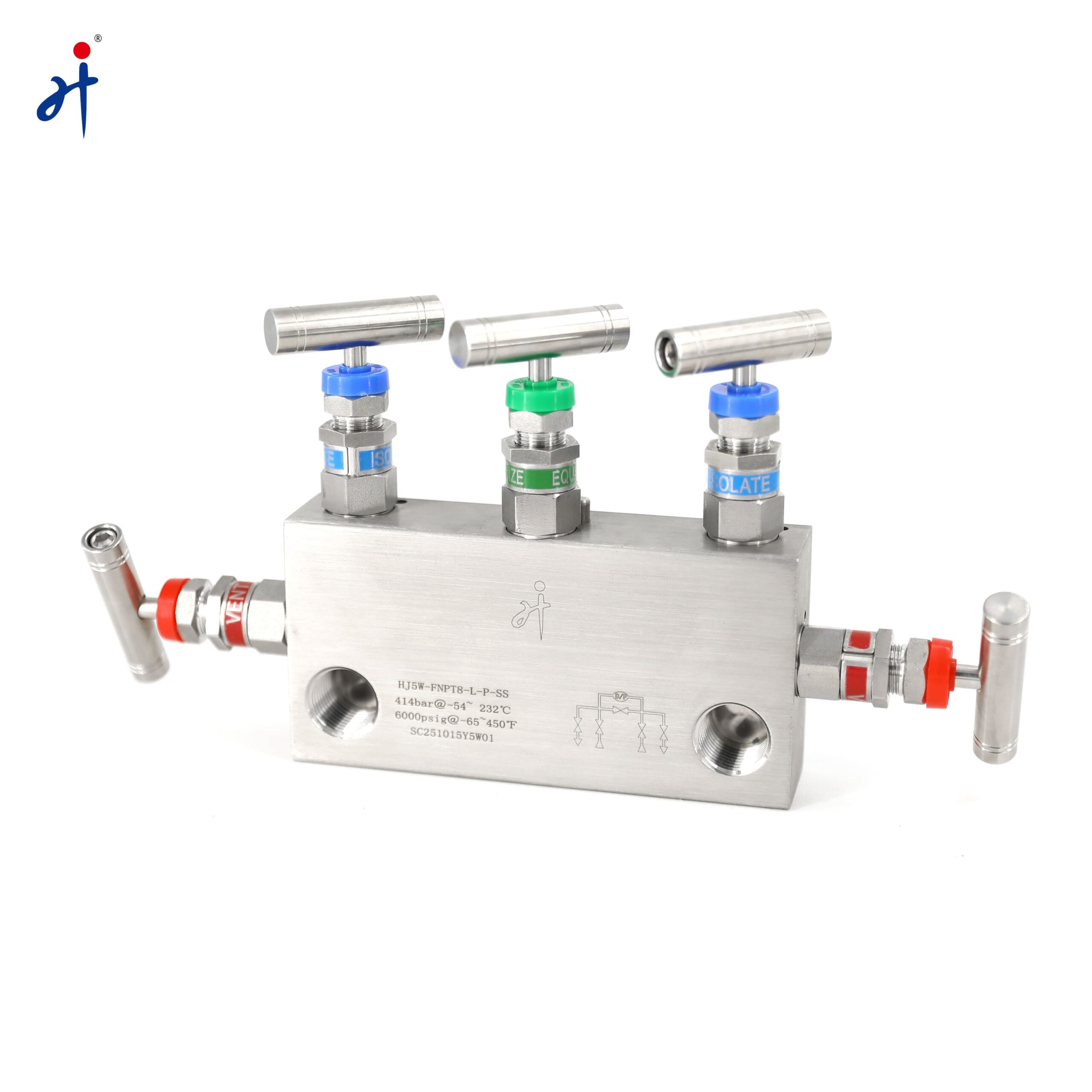

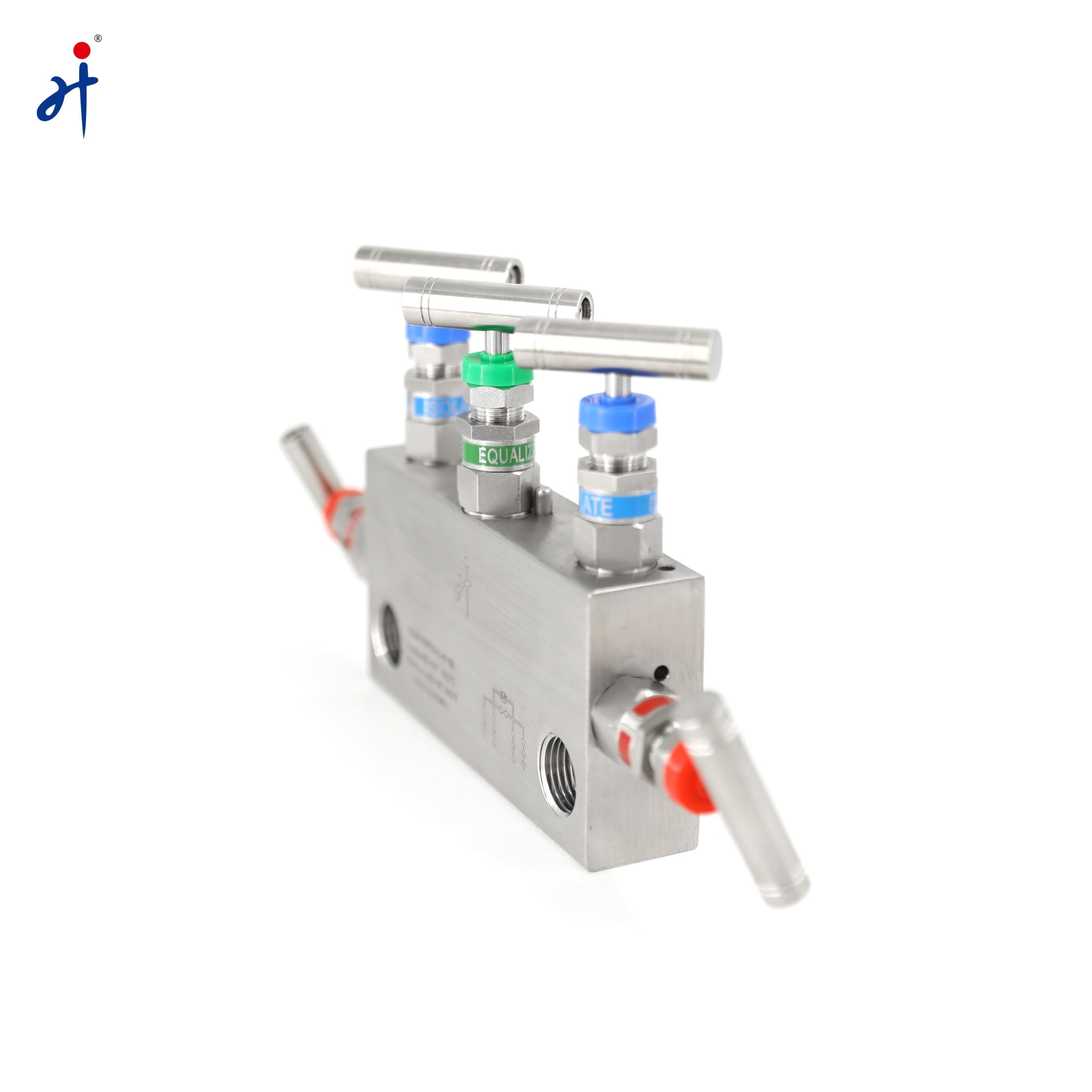

Stainless Steel Integrated 5 Valve Manifold is specially engineered for differential pressure transmitters and process instrumentation systems. Combining two isolation valves, two equalizing valves, and one vent valve into a single compact body, this manifold ensures safe operation, accurate pressure balancing, and simplified maintenance.

Manufactured from high-quality SS316 stainless steel, the manifold delivers excellent corrosion resistance, high-pressure capability, and dependable sealing performance in demanding industrial environments.

Applications:

1. Oil & Gas Industry

• Pressure Control: For monitoring and controlling high-pressure fluids and gases in drilling, production, and refining processes.
• Flow Measurement: To measure flow rates and manage flow in pipelines and refineries.
• Isolation & Venting: Manifold valves allow for easy isolation, draining, and venting in high-pressure systems.

2. Chemical and Petrochemical Plants

• Chemical Process Control: Used in controlling the flow of reactants, solvents, and catalysts in chemical reactors.
• Safety and Monitoring: Ensures safety in high-risk environments by controlling pressure and flow within equipment like pumps, reactors, and distillation columns.

3. Power Generation

• Steam and Water Systems: For controlling steam and water flow in power plants, particularly in high-pressure systems.
• Instrumentation: Helps in managing the signals for temperature, pressure, and flow measurement in boilers and turbines.

4. Pharmaceutical and Biotechnology

• Sterile Fluid Control: Integral five valve manifold are crucial for maintaining sterile conditions and controlling fluid flow in pharmaceutical and biotech production, ensuring that processes such as fermentation and mixing are precisely controlled.
• Hygienic Isolation: Ensures hygienic isolation of different parts of the system, maintaining contamination-free operations.

5. Water Treatment and Distribution

• Flow Regulation: MIntegral five valve manifold regulate the flow of water through treatment plants and distribution systems.
• Pressure Control: Used in regulating pressure in pipelines and during water treatment processes.

6. HVAC (Heating, Ventilation, and Air Conditioning)

• Temperature and Pressure Regulation: Used in controlling the flow of refrigerants and heating fluids in HVAC systems.
• Isolation and Maintenance: Ensures ease of isolation for maintenance purposes in complex HVAC systems.

7. Laboratories and Research Facilities

• Precise Fluid Management: Manifold valves are used in laboratories to precisely control the flow of gases and liquids in research experiments.
• Multi-Channel Fluid Control: Used to manage multiple fluid sources, directing them to different test systems or research equipment.

Advantages:

• Non-rotating stem Design to minimize the abrasion
•  Redesigned lock head to secure the locking gland
• 100% pneumatic test at 1.5 times the design pressure before packing
• Default Tip is Hastelloy to extend the life cycle
• Doosan, Citizen, Okuma Lathe ensures maximum machining precision

Ordering Number Description:

Notes:

1.Ordering Number Indication illustrates the classification and combination of Hongji products, which can not be randomly combined.
2.For those valves made of other type of material other than listed ,please contact the Hongji sales personnel.
3.If an oxygen-dedicated valve manifold is required, include “O2” in the basic order number, for example:HJ2W-MNPT8-FNPT8-H-P-SS-O2

Remarks:

The order number above indicates specific port size and type and other perimeters, and can not be randomly combined, please refer to our sales support for more technical details or the catalog if needed.
